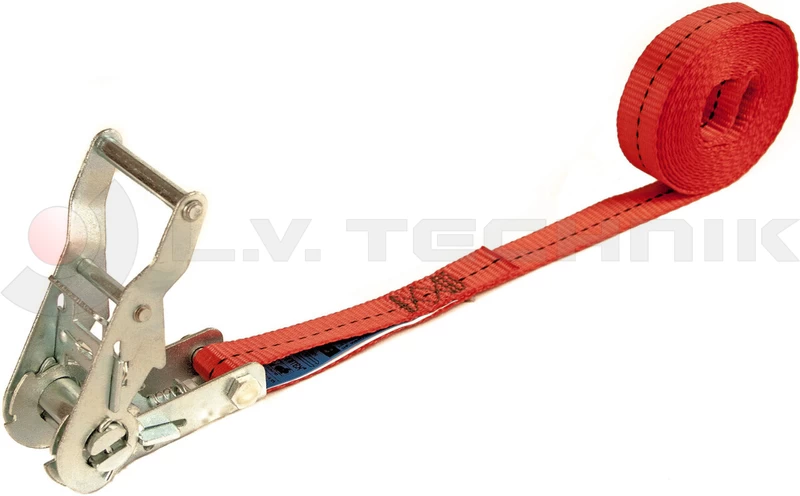

Lashing strap one part 1t 4m

Code
25R.10.40
Price
Please sign in
Strap width
Complete length
Shf
Stf
25mm
4m
50daN
120daN
LC loop
Material
Elongation
Certificate
10kN
PES
< 5%
TÜV GS

  • Lashing strap with a durable ratchet made of metal only.

EN12195-2
• blue label in accordance with the regulation, sewn inside the belt hook to be protected against environmental impacts

  • 25mm wide polyester, resistant to UV light with a breaking capacity of 15kN.

Weight
0,455 kg

Stock
Lajosmizse
in stock
Szigetszentmiklós
in stock

Blue label

According to EN12195-2 every PES (polyester) made cargo control product must be supplied with an attached blue label. This label provides information about the technical details of the lashing strap and tracking information about the production time, location and producer. If the label is lost or become unreadable the product cannot be used any more. It also has a hidden part sewed into the lashing material, this way the necessary tracking information can be gained even after losing the visible blue label.
This indicates that there is a strict regulation about the content of the visible and non-visible part of the label.

Visible part

GS/TÜV certificate
It is not compulsory but good to have such a certificate for the lashing strap.

Material information
PES (polyester)

Applied European Norm
EN12195-2

Elongation
< 7%

SHF (standard hand force)
Hand operating force applied on the ratchet (50daN = ~50kg).

STF (standard tension force)
Residual force in the strap after release of the handle of the ratchet.

Lashing capacity (LC)
Maximum force for use in straight pull that a web lashing is designed to sustain is use. In addition usually the tie down capacity is also listed with LC marking, its value is double of the standard lashing capacity.

Length
Length of the long end given in meters.

Serial number
Provides tracking information about the production time, location and producer.

Production date

Warning
The lashing strap cannot be used for lifting, only for lashing!

Supplier or manufacturer mark
Name, symbol or registered trade mark of the manufacturer or supplier.

Non-visible part

Supplier or manufacturer mark
Name, symbol or registered trade mark of the manufacturer or supplier.

Lashing capacity (LC)
Maximum force for use in straight pull that a web lashing is designed to sustain is use.

Material information
PES (polyester)

Applied European Norm
EN12195-2

Serial number
Provides tracking information about the production time, location and producer.

Production date

White label

Contains the generale usage information - according to EN12195-2 - for the lashing strap:

  • Inspect the lashings for damage before each use.

  • Do not use if there are any damage e.g. cut webbing or deformations in the tensioning mechanism or and fittings.

  • Observe the rated assembly strength on the label applied to the lashing mode (observe also EN 12195-1 and EN 12195-2).

  • Use protectors for sharp edges (both on the load and the vehicle).

  • Avoid heat superior to 100°C.

  • Do not twist or knot the webbing.

  • The ratchet can be operated only with the maximal allowed hand force.

SHF (standard hand force)

Hand operating force applied on the ratchet (50daN = ~50kg). The handle has to be operated with this force to generate the standard tension force in the strap.

STF (standard tension force)

Residual force in the strap after release of the handle of the ratchet. The longer the ratchet is, the stronger force in the strap generated.
