Aluminium door 2300-2400mm
Code
ZB.0240
Price
Please sign in

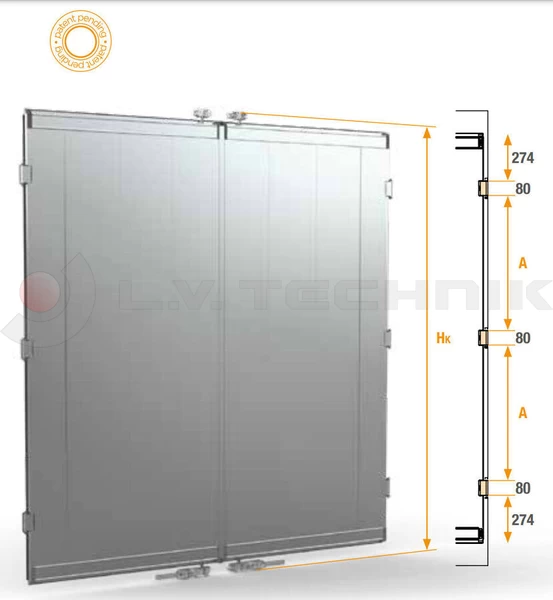

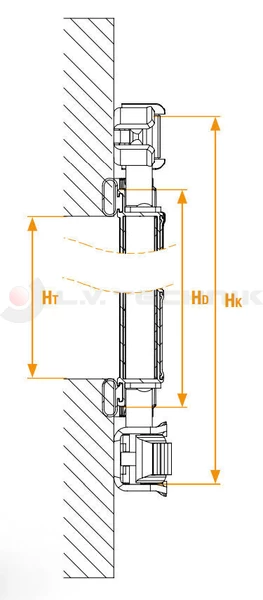

HK (mm)
HD (mm)
HT (mm)
A (mm)
Lmin (mm)
2553
2441
2400
827
2100
Lmax (mm)
Cmin (mm)
Cmax (mm)
Dmin (mm)
Dmax (mm)
2350
2030
2280
2045
2295
Omin (mm)
Omax (mm)
2080
2330
Stock
Lajosmizse
in stock
Szigetszentmiklós
-
• adjustable width between 2100-2350mm

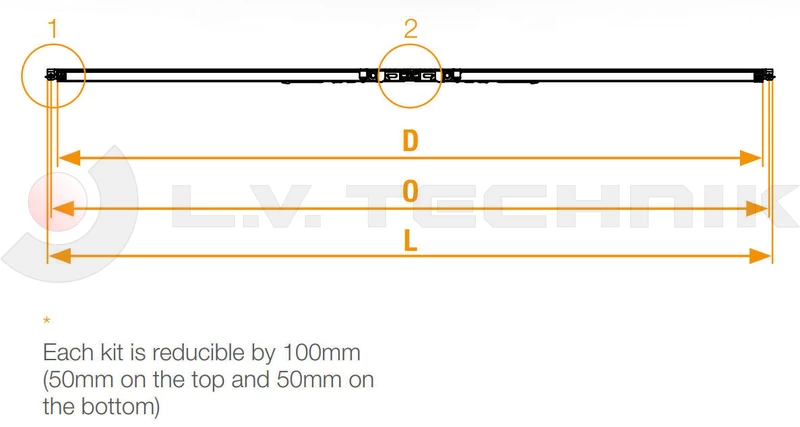

• applicable for trucks with internal height 2300-2400mm (each kit is reducible by 100mm, 50mm on the top and 50mm on the bottom)
• double pivot hinge (steel weldable or aluminium rivetable counter part can be ordered separately)
• 2x locking kit
• panel mounted, with mounting instructions
Material
anodized aluminium
Weight
75,1 kg
